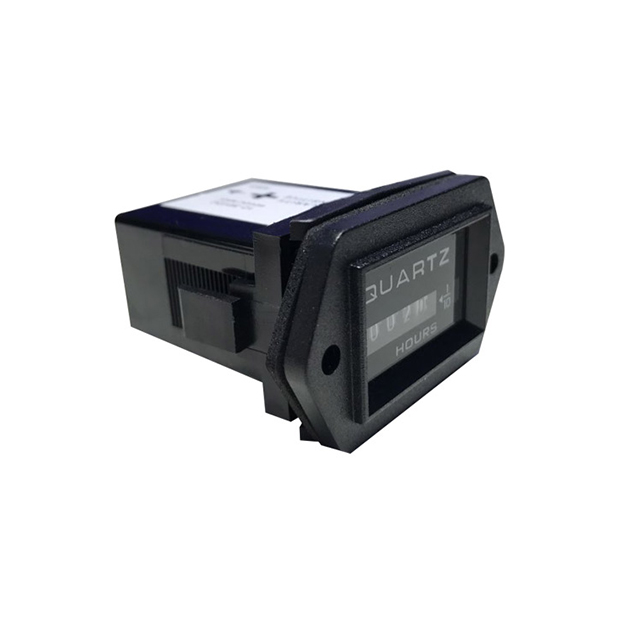

B02-H004 Hour Meter Mechanical Rectangular
Product Number: B02-H004
Pointer or Numeric Display: Number wheel
Gauge Size (mm): 54LX31.7W
Gauge Depth (mm): 55
Operating Voltage: DC 8~90V
Operating temperature: -20℃ to +85℃
Mounting Hardware: YES
Instruction Manual: YES
Application: forklifts, golf carts, floor care equipment, and any other battery powered equipment.


INQUIRY
PREV NEXT BACK
  • Product Description
  • Product Specification
  • Q&A

Product Number

B02-H004

Product description

Diesel Engine Mechanical Hour Meter

Features

Light weight, power saving mode, wireless, easy installation. Track the service interval of your vehicle – engine hour, oil changes, valve, adjustments, spark plugs, etc.

Installation

Put the hour meter in to mounting hole, and use the sanp joint to fasten the meter.

(Battery: CR2050/ 410mAh)。

Function

Low Power Consumption
Meticulous PCB Design
Power saving mode Power off to if no operation activity for 15 seconds

Timing system including: cumulative total running time

Application

Motorcycle, trucks, race cars, boats, golf carts, forklifts, RV's, off road vehicles, karting, etc.

Place of origin

Taiwan

Product Model

 B02-H004

Display Reading

9999.9 with running indicator
(Automatically recycle to zero)

Digit Height

7mm

Operating Voltage

8 to 90V DC ,or 110 to 220V AC 50/60Hz

Resolution

0.1 hours
Memory capacity CMOS EEPROM
Storage and Operating -20 to +65 C Temperature
Humidity 95% RH+32C for 2 Hours
Protected from Alternator load dump, inductive Switching
Polarity Positve/Negative

Case Style

Front panel mount. Other styles are available
